Brake System > ESC(Electronic Stability Control) System > ESC Control Module > Components and Components Location

VELOSTER(FS) >2013 > G 1.6 T-GDI > Brake System > ESC(Electronic Stability Control) System > ESC Control Module>Components and Components Location

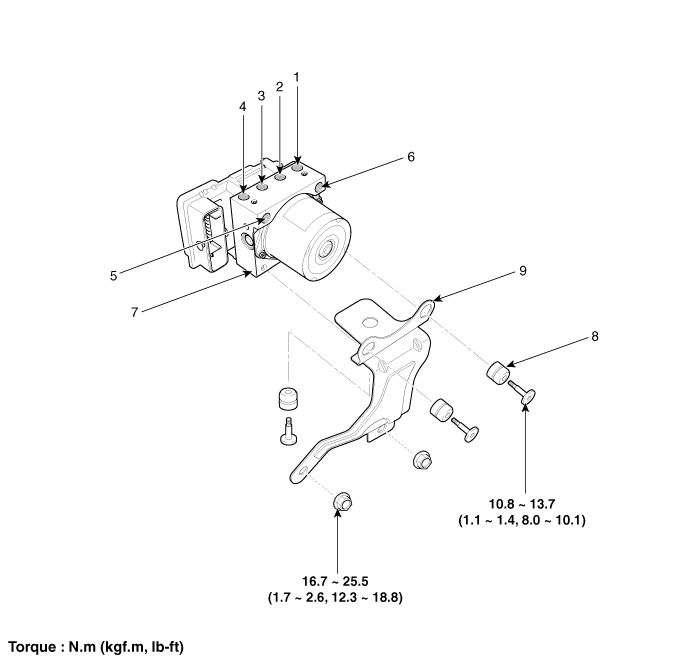

Components

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2

6. MC1
7. ESC control module (HECU)
8. Damper
9. Bracket
