Heating,Ventilation, Air Conditioning > Blower > Blower Unit > Components and Components Location

VELOSTER(FS) >2013 > G 1.6 T-GDI > Heating,Ventilation, Air Conditioning > Blower > Blower Unit>Components and Components Location

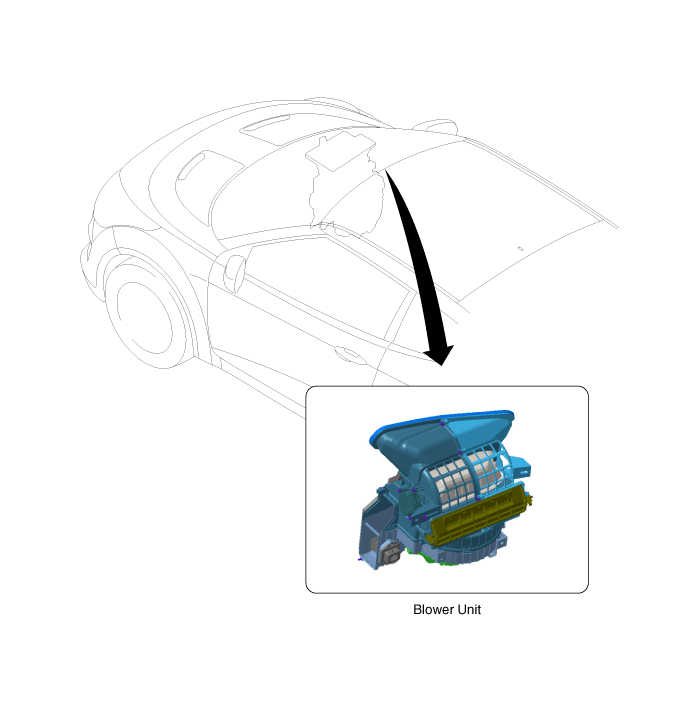

Component Location

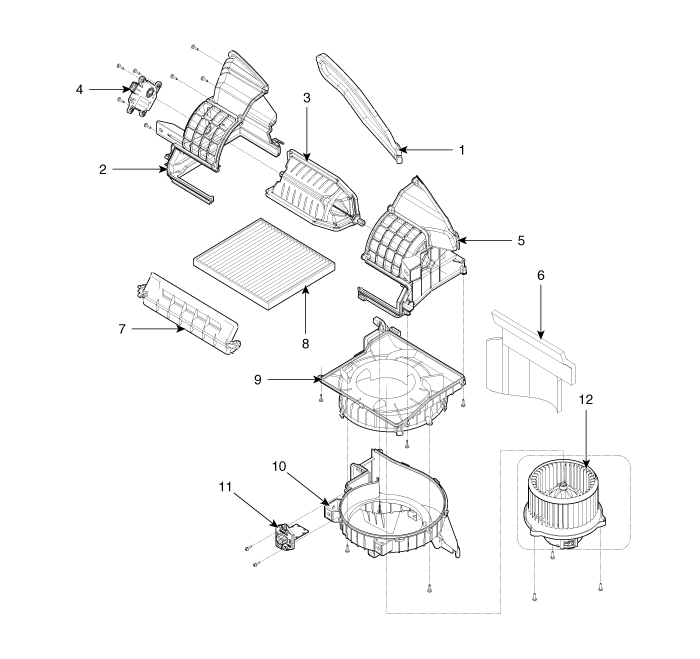

Components

1. Blower Seal
2. Intake Case [LH]
3. Intake Door
4. Intake Actuator
5. Intake Case [RH]
6. NVH Pad

7. Climate Control Air Filter Cover
8. Climate Control Air Filter
9. Upper Blower Case
10. Lower Blower Case
11. Blower Resistor
12. Blower Motor
