VELOSTER(FS) >2013 > G 1.6 T-GDI > Body Electrical System > Lighting System > Hazard Lamp Switch>Repair procedures
Inspection
1.
The GDS will be able to diagnose defects of hazard switch quickly. The GDS can operates actuator manually, input/output value monitoring and self diagnosis.
2.
Select model and "BCM".
3.
Select the "SJB" to check.
4.

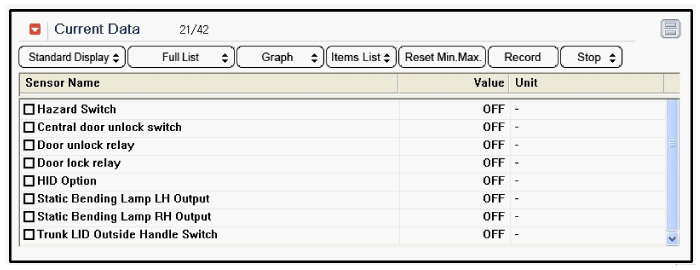

Select "Current data", if you will check current data of hazard switch. It provides input/output status of SJB.

Removal
1.
Disconnect the negative(-) battery terminal.
2.
Remove the heater control module.
(Refer to the HA group - "Controller")

Installation
1.
Install the heater control module.
(Refer to the HA group - "Controller")
